Professional Line
Laser welding

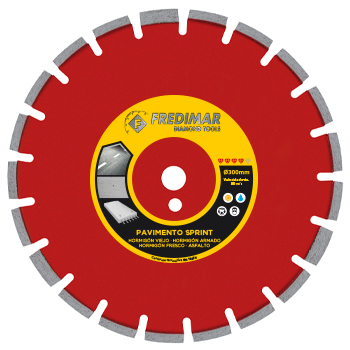

Open Notch - EA
Open notch cutting blade of 10 mm diamond height and reinforcing segments of 15 mm height to prevent wear on the welding area. They cut all types of flooring (concrete, reinforced concrete, asphalt) cutting rapidly.
Laser welding to provide maximum safety and allow dry operation.
 |
 |
 |
 |
| CONCRETE | REINFORCED CONCRETE | FRESH CONCRETE | ASPHALT |
| Code | External Ø mm | Height mm | Interior Ø mm |
|---|---|---|---|
| Other interior Ø on request | |||
| DSLS300ASP10 | 300 A | 10 | 25,4 |
| DSLS350ASP10 | 350 A | 10 | 25,4 |
| DSLS400ASP10 | 400 A | 10 | 25,4 |
| DSLS450ASP10 | 450 A | 10 | 25,4 |
Professional Line
Laser welding

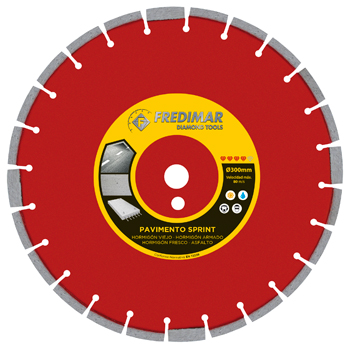

Reduced Notch - ER
Reduced notch cutting blade of 10 mm diamond height and reinforcing segments of 15 mm height to prevent wear on the welding area. They cut all types of flooring (concrete, reinforced concrete, asphalt) cutting rapidly.
Laser welding to provide maximum safety and allow dry operation.
|
|
|
|
| CONCRETE | REINFORCED CONCRETE | FRESH CONCRETE | ASPHALT |
| Code | External Ø mm | Height mm | Interior Ø mm |
|---|---|---|---|
| Other interior Ø on request | |||
| DSLS300RSP10 | 300 R | 10 | 25,4 |
| DSLS350RSP10 | 350 R | 10 | 25,4 |
| DSLS400RSP10 | 400 R | 10 | 25,4 |
| DSLS450RSP10 | 450 R | 10 | 25,4 |
| DSLS500RSP10 | 500 R | 10 | 25,4 |
| DSLS600RSP10 | 600 R | 10 | 25,4 |
Special flooring utilities table - Laser Sprint 10
Tools
