GTC-220-MP Electric drill

Professional Line


GTC 220 MP

GTC-220-MP electric drill with micropercussion for dry work

  • Ideal for electrical installers, plumbers and HVAC installers
  • Integrated dust extractor
  • With micropercussion for very fast drilling of reinforced concrete
  • Motor body completely in aluminum
  • Double electrical safety insulation
  • Exclusive side handle easily adjustable for any drilling position
  • “CE” certification

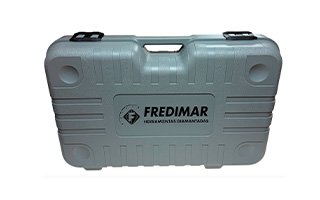

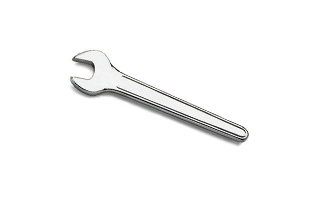

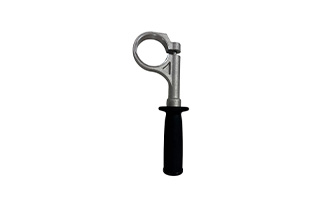

  • INCLUDES: Anti-shock thermoformed case, 32 mm wrench and side handle
columna GT MP

GT tilting column

  • Base dimension: 290 x 210 mm
  • Column dimension: 65x55x870 mm
  • Tiltable from 0° to 45°
  • Useful stroke: 600 mm
  • Weight 12 kg
  • “CE” certification
  • INCLUDES: Fixing bar, 5 M12 metal dowels, 19 mm fixed wrench, 6 mm Allen key and spacer to work with Ø 252 mm drill

icono pdfDownload technical information

Model GTC-220-MP
R.P.M. 2000
Power (W) / Motor Voltage (V/Hz) 2000 W / 230V - 50/60 Hz Single phase
Micropercussion 34000 ipm
Thread 1-1/4"
Weight (kg) 6
Cable length (m) 4.4
Maximum drill diameter (mm) 162 (202 with spacer)

Optional accessories NOT included Code
detall reductor 1 ”1/4 F and M-16 M thread reducer. Length 150 mm AROSCA1/4H-M16M
detall barra fijacion Central fixing bar APFBFCBR
detall tacos metalicos Box of 50 M-12 metal dowels for central fixing bar APF-50TM
detall adaptador aspiracion Suction adapter with double thread 1 ”1/4 Female / Male APFASP1”-1/4
detall base vacio GT Vacuum base for GT column.
Allows the support to be fixed without the need for dowels or fixing bar
detall-bomba-vacio Vacuum pump to create a vacuum in the bases and fix screwless drills.
Absorption flow rate of 3.2 m3/h
detall-bomba-agua 10 liter water pump.
To connect to the drill when there is no water on site to drill
detall-sis-aspiracion Suction housing (dust / liquids) up to Ø 127mm APFCA
detall arandela desmontaje Washer for bits quick removal AROSCA-FACIL

Electric drill machines

See other Electric drills of the same family.

  • GTC 220 MP peque


    Electric drill machiine with micropercussion to work dry the reinforced concrete and asphalt.

    Read more

  • GT 202 peque


    Electric drilling machine to work dry or wet, ideal for intense and continuous uses.

    Read more

  • br-300-peque


    Electric drill ideal for intense and continuous uses, very resistant for large diameter drills.

    Read more
