BR-300 Electric drill

br 300
Professional Line

seco humedo

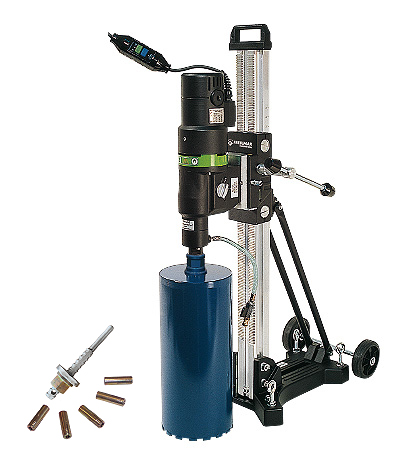

BR-300 electric drill for wet or dry work

  • Ideal machine for intense and continuous uses
  • Very strong for large diameter drills
  • Support with wheels tiltable from 0° to 45°
  • Safety protective switch PRCD
  • Useful stroke: 700 mm
  • 3 speeds: 270 – 700 – 1.250 rpm
  • Thread 1-1/4”
  • Weight: 32 kg
  • “CE” certification
  • INCLUDES: 1 32 mm wrench, 1 41 mm wrench, fixing bar and 5 M12 metal plugs

icono pdfDownload technical information

Model BR-300
3 Speeds R.P.M. 270 - 700 - 1.250
Power (W) / Motor Voltage (V/Hz) 2800 W / 230V - 50/60 Hz Single phase
Thread 1-1/4"
Weight (kg) 32
Useful stroke (mm) 700
Maximum drill diameter (mm) 300 (352 with spacer)

Optional accessories NOT included Code
detall reductor 1 ”1/4 F and M-16 M thread reducer. Length 150 mm AROSCA1/4H-M16M
detall barra fijacion Central fixing bar APFBFCBR
detall tacos metalicos Box of 50 M-12 metal dowels for central fixing bar APF-50TM
detall adaptador aspiracion Suction adapter with double thread 1 ”1/4 Female / Male APFASP1”-1/4
detall base vacio Vacuum base for BR column.
Allows the support to be fixed without the need for dowels or fixing bar
APFBSVCBR
detall-bomba-vacio Vacuum pump to create a vacuum in the bases and fix screwless drills.
Absorption flow rate of 3.2 m3/h
APFBV
detall-bomba-agua 10 liter water pump.
To connect to the drill when there is no water on site to drill
APFBA
detall-sis-aspiracion Suction housing (dust / liquids) up to Ø 127mm APFCA
detall arandela desmontaje Washer for bits quick removal AROSCA-FACIL
